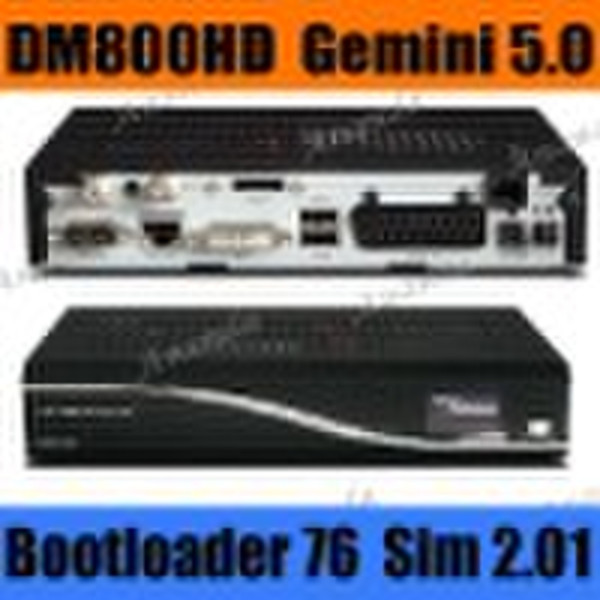

Dreambox 800HD

Dreambox 800HDTechnical Feastures(800hd10061201)300 MHz MIPS ProcessorLinux Operating SystemOLED - DisplayMPEG-2 / H.264 Hardware decodingTuner: DVB-S, optional: DVB-C, DVB-TTuner Module, Plug&Play1 x Smartcard-Reader (Dreamcrypt CA)V.24/RS232 Interface10/100Mbit Ethernet Interface1 x Scart (RGB, FBAS or S-Video)DVI2 x USB 2.0analog modemS/PDIF Interface for digital bit stream out (AC-3)64 MByte Flash, 256 MByte RAMSATAfor use either as internal SATA HDD 2,5“or to use for external eSATAunlimited channel lists for TV/Radiochannel-change time < 1 secondautomatic service scandirectly bouquet-listsEPG (electronic program guide)multiple LNB-Switching control (supports DiSEqC)OSD in many languages and skin-supportVideotext Decoderextern 12V power supplyDBS-Tuner mit DVB-S2: Frequency Range 950 .... 2150 MHz Demodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK) Symbol rate DVB-S: 2 ... 45 Mbaud/s, SCPC/ MCPC DVB-S2: 10 – 31 Mbaud/s (8PSK) , 10 –30 Mbaud/s (QPSK)Video decoder: Video Compression MPEG-2 and MPEG-1 compatible, H.246 Video Formats 4:3 / 16:9 Letterbox for 4:3 TV-DeviceAudio decoder: Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3 Audio Mode Dual (main/sub), Stereo Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHzOutput analog: Output Level L/R 0,5 Vss on 600 Ohm THD > 60 dB (1 kHz) Crosstalk < -65 dBOutput digital: Output Level 0,5 Vss on 75 Ohm Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz S/PDIF-Output optical, ToslinkAusgang Video: Ausgangspegel FBAS 1 Vss +/- 0.3 dB an 75 OhmVideo parameter: Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm Teletext filter in conformity with ETS 300 472 StandardTV-Scart: Output: FBAS, RGB, S-VideoSerielle Interface RS 232: Typ RS232 bidirectional Bitrate 115,2 kBit/s max. Plug Connector SUB-D-9 Function: Update of FirmwareEthernet: 10/100 MBit compatible interface Function: Update of FirmwareAnaloge modem: analoge modem for Internet connectionSATA Interface: for use either as internal HDD 2,5“ or eSATAor internal 2,5" HDDUSB 2 x USB 2.0 HostLNB power and polarisation per tuner: LNB Current 500mA max.; short-circuit-protected LNB Voltage vertical < 14V no load, > 11,5V at 400mA LNB Voltage horizontal < 20V no load, > 17,3V at 400mACount of active satellite position: DiSEqC 1.0/1.1/1.2 and USALS (Rotor Control)Power consumption: < 15W at 12VExternal PSU Input: 110-240V AC / 50-60Hz / 0,6A Output: 12V = / 3,0APhysical specification: Ambient Temperature +15°C...+35°C Humidity < 80% Size (W x D x H): 195 mm x 140 mm x 40 mm Weight: 1,8 kg without HDD
